If you're a dispatcher, air traffic controller, or emergency responder still running a Plantronics CA12CD-S, here's what you need to know: it's discontinued, and the Poly CA22CD family (SC and DC variants) has replaced it — with real upgrades, but zero backward compatibility on parts.
Key takeaways
- The Plantronics CA12CD-S is discontinued after 15 years as the dispatch/ATC PTT standard.
- The Poly CA22CD-SC is the direct single-channel replacement, adding 256-bit AES (FIPS 140-2) encryption and built-in micro-USB.
- CA12CD-S batteries, remotes, and cables are not backward compatible with the CA22CD family — only existing H-series corded headsets carry over.
- The CA22CD-DC is the dual-channel variant, using a different console interface cable than the SC.
- USB connectivity no longer requires a separate adapter, unlike the CA12CD-S setup.
Why the CA12CD-S was replaced
The CA12CD-S had been the standard PTT (push-to-talk) adapter for dispatchers and traffic controllers for about 15 years, letting a console operator keep their microphone muted by default and reactivate it with a button press. As encryption and connectivity requirements moved on, Plantronics/Poly discontinued it in favor of the CA22CD family.
What's different: encryption and connectivity
The CA22CD family steps up to 256-bit AES encryption, meeting the military-grade FIPS 140-2 standard — a meaningful security upgrade over the CA12CD-S's older encryption. It also adds a built-in micro-USB port on the base, so connecting to a computer no longer requires a separate USB adapter the way the CA12CD-S did.
Myth
My CA12CD-S batteries, remotes, or cables will work with a new CA22CD unit.Reality
They won't — CA12CD-S batteries, remotes, cables, and adapters are not backward compatible with the CA22CD family. The one exception is your existing Plantronics corded H-series headsets, which still connect the same way via their Quick Disconnect (QD) cable end. Budget for new batteries and remotes as part of the upgrade, not just the base unit.CA22CD-SC vs. CA22CD-DC: single vs. dual channel
The CA22CD comes in two versions, and picking the right one depends on your console setup:

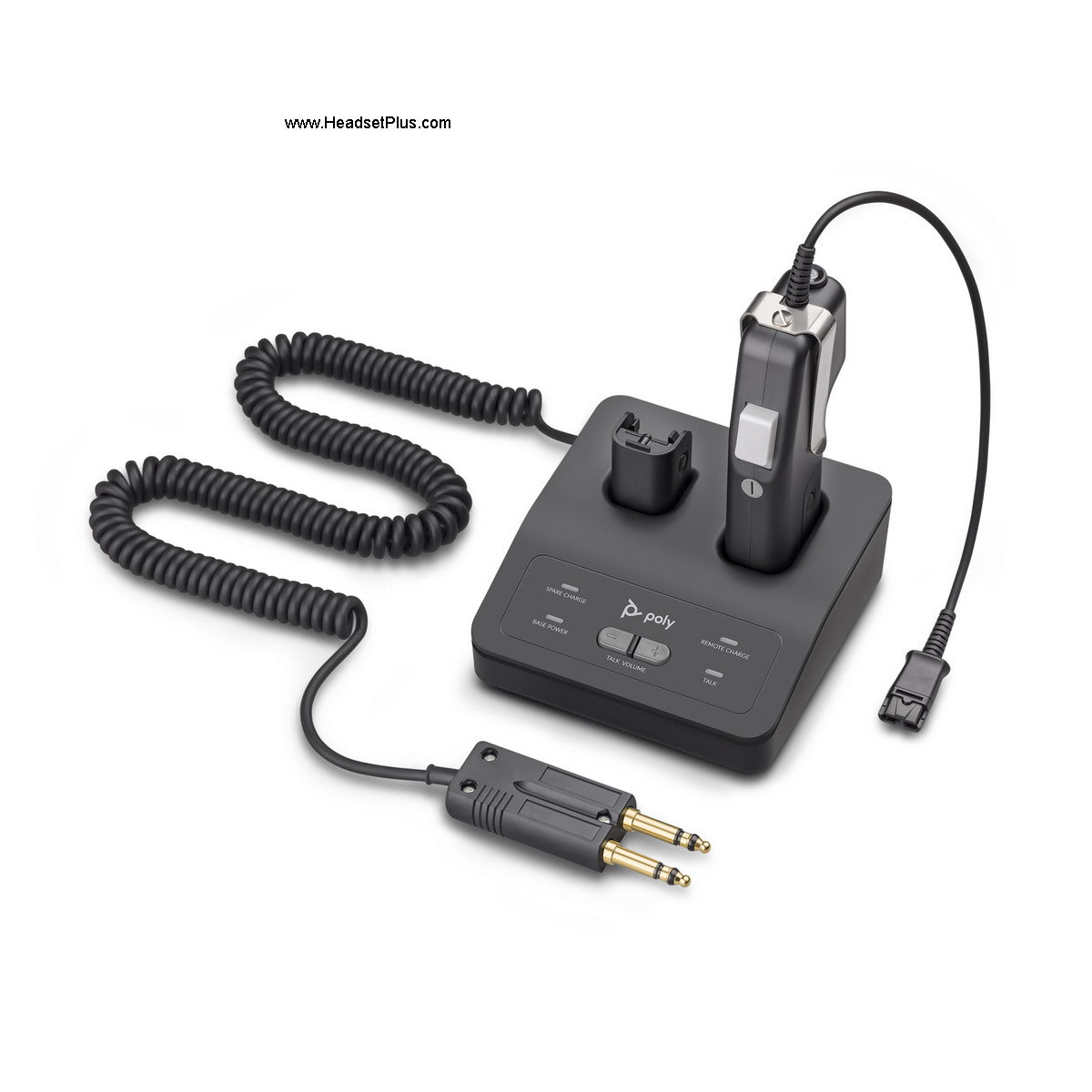

- CA22CD-SC (single channel): the direct replacement for the CA12CD-S, using the same PJ-7 double-prong interface cable. This is the more common configuration and the one most dispatch consoles need.
- CA22CD-DC (dual channel): uses a different console interface cable (a Lemo connector rather than the SC's PJ-7) to support consoles that need two receive channels. It can also function as a single channel if needed.
Both versions use the same higher-encryption chipset and micro-USB connectivity — the difference is purely in the console-side interface cable and channel configuration, not audio quality or security level.
Connecting your existing headset
Any Plantronics H-series corded headset — such as the Plantronics HW520 — connects to the CA22CD family the same way it did with the CA12CD-S: the QD cable end clips into the matching cable on the PTT remote unit. This is the one piece of your existing setup that genuinely carries over to the new system.
Is the Plantronics CA12CD-S still available?
No, it's discontinued after roughly 15 years as the standard dispatch/ATC PTT adapter. The Poly CA22CD-SC is its direct replacement.
What's different between the CA12CD-S and the new CA22CD family?
The CA22CD family adds 256-bit AES (FIPS 140-2, military-grade) encryption and a built-in micro-USB port, removing the need for a separate USB adapter that the CA12CD-S required.
Can I use my old CA12CD-S batteries or remotes with a new CA22CD unit?
No, batteries, remotes, cables, and adapters from the CA12CD-S are not backward compatible with the CA22CD family. Only your existing Plantronics corded H-series headsets carry over to the new system.
What's the difference between the CA22CD-SC and CA22CD-DC?
The CA22CD-SC is single-channel and uses the same PJ-7 interface cable as the old CA12CD-S. The CA22CD-DC is dual-channel, using a different Lemo-connector interface cable to support consoles needing two receive channels, though it can also run as single-channel if needed.
If you're planning an upgrade from the CA12CD-S, budget for new batteries and remotes alongside the base unit, and confirm whether your console needs the single-channel CA22CD-SC or the dual-channel CA22CD-DC. Call our team at 877-999-3838 for help matching the right configuration to your console.
