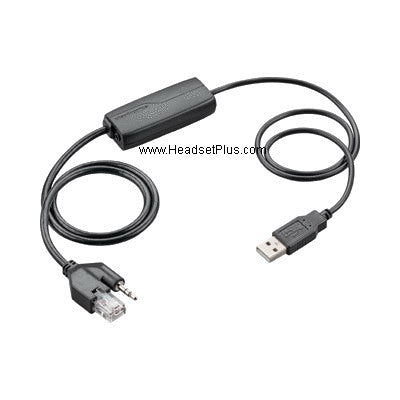

Plantronics APU-72 Cisco, Nortel Savi/CS500 Hookswitch EHS

Plantronics APU-72 EHS Adapter cable for remote Headset Hookswitch. Compatible with Plantronics Savi and Plantronics CS500 series wireless headsets (see below) and Cisco 8961, 9951, 9971 IP phones and Nortel (Avaya) 1120E, 1140E, 1150E, 1165E  phones.

Plantronics CS540, CS510, CS520 , Plantronics Savi WO100,   Plantronics Savi WO200,   Plantronics Savi WO300  Plantronics Savi WO350 , Plantronics Savi W740,  Plantronics Savi W710 , Plantronics Savi W720 ,  Plantronics Savi W730 ,  Plantronics Savi W745

This EHS cable allows users to answer and end calls up to 300 ft. away from their desks. The seamless integration of handset and headset allows users to benefit from enhanced mobility and the ability to multitask while on a call.  Do not order this cable if your phone is not listed.

Key Features:

• Compatible with Cisco IP 8961, 9951, 9971 models
• Same as previous part# 83018-01, 83018-21, 83018-11
• Also compatible with Avaya/Nortel IP Phones 1120E, 1140E, 1150E, 1165E
• Replaces Plantronics APU-70, APU-71
• Enables remote ring alert and call answer/end capability on your Plantronics wireless headset, allowing you to move freely throughout the office without missing a call
• Eliminates the need for Plantronics HL10 handset lifter
• The Cisco server must be running Cisco CallManager System Version 4.1(3)SR5x or higher. This must be verified by your telephone administrator.
• The Cisco phone must be running firmware 8.3(3)x or higher.
  Press the settings button on the phone (Checkbox icon). Select “Model information”. The firmware revision is listed under “Load File”
• EHS software functionality must be enabled though Cisco Unified Communication Manager Administration application
• Nortel firmware 3.1 has enabled USB support on Nortel 1120E and USB and Bluetooth support for 1140E and 1150E. The firmware revision needs to be at least rev 0624C6J (1120E), 0625C6J (1140E), 0627C6J (1150E) and up.

Old Poly part # 202578-01

New HP part # 85Q95AA

Cisco Phone setup
The phone must be set for “Wireless Headset Hookswitch Control” = Enabled
Press the settings button on the phone (Checkbox Icon). Select “Device Configuration” >> Select “Media Configuration”
If “Wireless Headset Hookswitch Control” is “Disabled”, contact your telephone administrator.

note: Do not order this adapter if your phone is not listed
