NEC phone headset setup: what the phone is missing out of the box
NEC phone headset setup is a programming job rather than a wiring job. The desk phone has a headset jack, but NEC systems ship with no headset key defined, so nothing sends call audio to that jack until someone creates one. On an SL2100 the headset key is function key code 05, set in Program 15-07-01 or from the phone itself with service code 751. UNIVERGE phones running on an SV9100 use the same pairing, listed in NEC's user manual as Service Code 751:05. Once the key exists, pressing it turns headset mode on and the key lamp shows red. From that point the hookswitch is out of the picture: NEC's SL2100 manual states that while in headset mode the hook switch is not functional, so calls get answered and ended with the headset key instead of by lifting the handset.
What actually decides whether the headset works
- NEC systems ship with no headset keys defined, which is the usual reason a brand-new headset makes no sound.
- Function key code 05 is Headset Operation, assigned from the phone with service code 751 or in Program 15-07-01.
- The key lamp lights red while headset mode is on, and the hookswitch stops answering calls.
- Automatic answer at the headset is a separate setting for ACD agents and is disabled by default.
The symptom is easy to recognize. A new corded headset goes into the port on the underside of the phone, the first call comes in, and there is dead air in both directions. The headset is usually fine and the port is usually fine. What is missing is a button.
Why a headset plugged into an NEC phone stays silent
An NEC phone stays silent because the system has no headset key until someone assigns one, and the headset key is the thing that puts the phone into headset mode. NEC's SL2100 documentation gives the default plainly: no headset keys defined. A phone that came out of the carton last week therefore behaves exactly like a phone with a broken jack, and the two look identical from the desk.
What the desk assumes
The headset is faulty, or the headset jack on the phone is dead.What NEC's manual says
NEC ships its systems with no headset keys defined at all. The jack is wired and the headset is almost always fine; the phone just has no key to move the call over to it, and assigning function key code 05 to a spare key takes about a minute.The key you assign is an ordinary programmable function key, the same kind that carries a line or a feature. NEC's function key table gives 05 to Headset Operation, describes the operation as pressing the key, and shows the lamp on red while the feature is active. That key is then spent for anything else, which is worth a moment's thought on a smaller set where every key is already spoken for.
How to program the headset key on an NEC phone
On SL2100 and SV9100-generation UNIVERGE phones you program the headset key from the phone itself, using service code 751 followed by function key code 05, with no visit to system programming and no installer login.
Start with the phone idle
Leave the handset in the cradle. The sequence begins at the Speaker button, so the phone should not be on a call or holding one.Press Speaker and dial 751
Service code 751 opens key programming from the handset. NEC's SV9100 user manual lists the Headset function against Service Code 751:05, and the SL2100 documentation references the same 751 route.Press the key you want to use
Choose a programmable key that is not carrying a line or a feature you use. Whatever that key does today, it stops doing once the headset assignment lands on it.Dial 05
05 is NEC's function key code for Headset Operation. On the SL2100 the same assignment exists in system programming as Program 15-07-01 set to 05, which is the route an installer takes when a whole floor needs the same key in the same place.Exit and press the new key
Press Speaker to leave programming, then press the key you just assigned. NEC's function key table shows the lamp on red when headset operation is active, so a lamp that stays dark means the assignment did not take and the sequence needs repeating.Ask about automatic answer only if you need it
Answering the next queued call without touching the key is a separate feature. On the SL2100 it is Program 41-14-04, Automatic Answer at Headset, set per ACD group and disabled by default, alongside Program 20-13-06 for automatic off-hook signaling. Programming the headset key does not turn it on.
NEC DSX phones
DSX phones use their own on-screen menu rather than a 751 service code, and NEC's DSX manual carries a dedicated procedure for setting up a headset feature key along with a separate control for turning headset mode on and off. The sequence in the field is short.
- Press Menu, dial 51, then press the feature key you want to convert.
- Press Select, then scroll with > until the display reads Headset.
- Press Select to accept it, then Back and Exit.
- Press the new key. You should get dial tone in the headset rather than out of the speaker.
Older NEC DLV sets
DLV sets do the whole job in one pass: press CALL1, dial 851, press the function key you want, enter 05, then press SPK. The code on the end is the same 05 that NEC uses across its newer platforms, which is a useful thing to remember when someone hands you an unfamiliar NEC set and no manual.
What changes once headset mode is on
The headset key takes over the job the handset cradle used to do. NEC's SL2100 manual is explicit that while in headset mode the hook switch is not functional, so lifting and replacing the handset no longer answers or ends anything. Calls start and finish on the key.
Headset mode: Headset mode: the state an NEC phone enters when the programmed headset key is pressed, routing call audio to the headset jack and taking the handset hookswitch out of the answering path until the key is pressed again.
That single condition accounts for most of the confusion after a successful install. Someone programs the key, tests it, and then reaches for the handset out of habit on the next call. Nothing happens, and the headset gets blamed a second time. If a desk needs to switch between handset and headset through the day, the answer is to press the key off rather than to work around it.
Ringing is a separate setting again. On a DT930 the user can choose whether incoming calls ring in the headset from the phone's own menu, under Settings, then User Setting, then Incoming Call, then Headset Ring. NEC notes that the feature needs both terminal and system settings in place at installation, so if the option is missing or does nothing, that is a question for whoever administers the system rather than a fault on the desk.
Which headset to plug into the NEC headset jack
A corded quick disconnect headset and the matching bottom cable is the ordinary fit for an NEC desk phone, because the headset jack is already there and the programmed key does the routing. Anything in the wired phone headset range that ends in a quick disconnect will work this way once the key is assigned, and the part that varies between phones is the cable, not the headset on top of it.

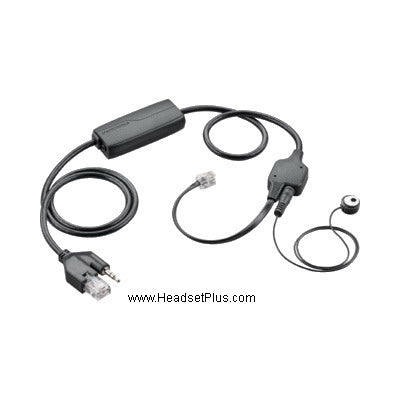

Wireless is where the model number starts to matter. NEC's DSX manual describes a DSX Wireless Headset Adapter that connects a Plantronics wireless headset system directly to the headset jack on specific models of DSX telephones, and the wording there is worth reading closely: specific models, not all of them. Remote answering from across the room needs an electronic hookswitch cable or a mechanical lifter, and which one depends on the exact NEC set in front of you. Call 877-999-3838 with the model number printed on the underside and we will confirm the right one before you order.
If the desk next to the NEC runs something else, the programming logic is the same and the key sequence is not. Our guides to mitel headset setup and the mitel headset button cover that side of the office.
Why doesn't my headset work on my NEC phone?
An NEC phone has a headset jack but no headset key defined by default, and NEC's SL2100 documentation lists that empty default explicitly. Until a programmable key is assigned to function key code 05, the phone has no way to move a call to the headset jack, so a working headset produces silence. Assigning the key is the fix, and it takes about a minute from the phone itself.
What is the code to program a headset key on an NEC phone?
The code on an NEC phone is 05, which NEC's function key table assigns to Headset Operation. On an SL2100 or an SV9100-generation UNIVERGE phone you press Speaker, dial service code 751, press the key you want to use, then dial 05. The same assignment exists in SL2100 system programming as Program 15-07-01 set to 05.
Can I still answer a call by lifting the handset once headset mode is on?
No. NEC's SL2100 manual states that while in headset mode the hook switch is not functional, so on an NEC phone in headset mode the handset cradle no longer answers or ends calls. Press the programmed headset key instead. Pressing it again takes the phone out of headset mode and gives the handset its normal behavior back.
Can I use a wireless headset with an NEC phone?
Yes, with the right adapter for the specific NEC model. NEC's DSX manual describes a DSX Wireless Headset Adapter that connects a Plantronics wireless headset system directly to the headset jack on specific models of DSX telephones, which is a reminder that support varies within a series rather than across it. Answering and ending calls away from the desk also needs an electronic hookswitch cable or a handset lifter chosen for your exact NEC set.
Everything above starts from one fact about NEC systems: the headset jack is finished hardware and the headset key is not. Assign code 05 to a spare key, watch the lamp go red, and the headset that seemed dead on arrival works on every call after that.
